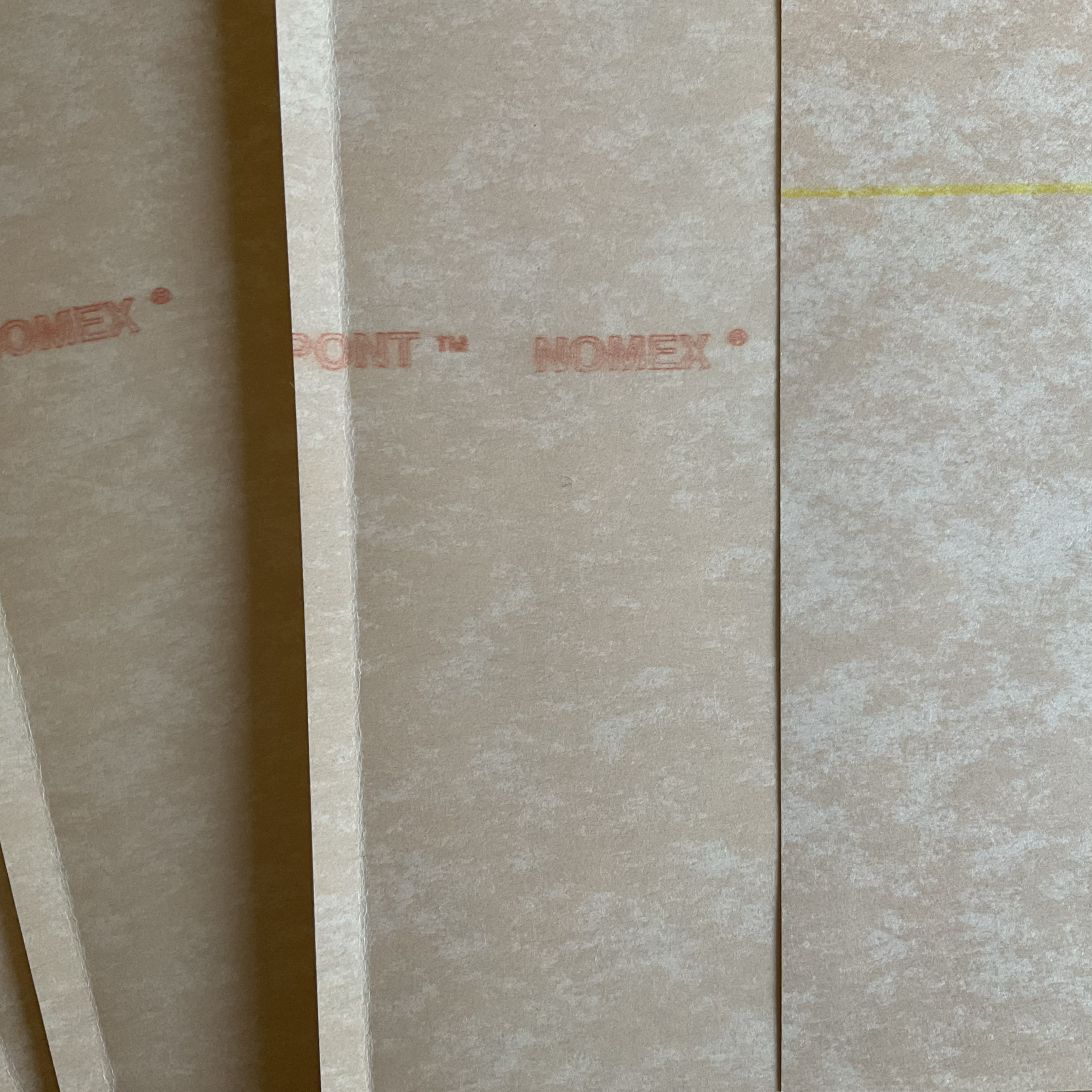

ISONOM® NKN 0885 is made of Polyimide or Kapton® (Du Pont) film covered on both sides with calendered Nomex (Du Pont) type 464. Each layer of Nomex® aramid paper is 0.050 mm, the polyimide film allows, by varying its thickness, to obtain a wide range of laminates.
Maximum operating temperature:
Class H – 180/200°C (IEC 60626)
Class H - 180°C (UL 1446)
Minimum operating temperature:
Nomex® -196°C / resin -60°C / Polyimide -60°C
Characteristics: insulating paper suitable for insulating transformers, in motor slots and in all those electrical applications that require:
excellent electrical insulation - excellent mechanical resistance - excellent thermal resistance.
Availability: Rolls 920 mm high, rolls cut starting from 7 mm high, internal diameter 76 mm,
pieces cut, shaped and die-cut according to customer request or design.
Color: White (red stripes with registered trademark and blue stripes)
ISONOM® NKN 0885 flexible insulating laminates must be stored in their original packaging in cool, dry places (relative humidity 50%).
We process
both the insulating papers normally in stock and other insulating papers upon customer request. Any type of insulating paper can be supplied as follows:
- Original rolls, whole or unwound
- Rolls cut to the customer's requested width
- Bordered rolls
- Slit rolls
- Customized processing (e.g., shaped, die-cut, etc.)
NOMEX® and KAPTON® are registered trademarks of Du Pont de Nemours.
ISONOM® is a registered trademark of ISOVOLTA Group.
