VOLTAFLEX® 2526 (Voltafase T) – Class B 130°C – Class F 155°C

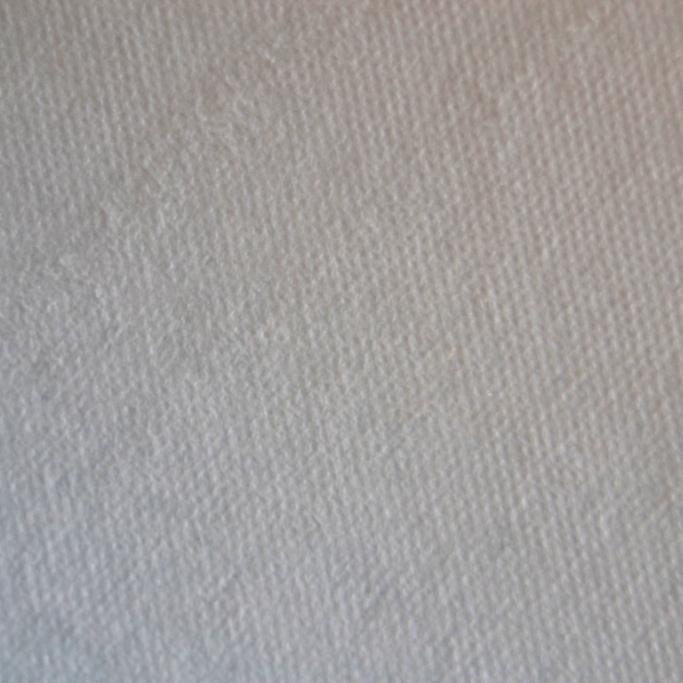

flexible insulating composites VOLTAFLEX® 2526 are made by combining a polyester film interleaved with two layers of polyester nonwoven fabric. The polyester nonwoven layer increases the polyester's resistance to thermal aging.

Its highly absorbent nature facilitates impregnation with paints or insulating resins, furthermore its "roughness" makes it less slippery, therefore ideal for use as a separator or bezel.

Maximum Operating Temperature: Class B/F – 130/155°C (IEC 60626)
Class F – 155°C (UL 1446)
Minimum Operating Temperature: Resin -60°C / Polyester -60°C

Insulating paper suitable for the insulation of transformers, in slots in motors and in all those electrical equipment that require: excellent electrical insulation - excellent mechanical resistance - good thermal resistance

Availability: rolls 1000 mm high, rolls cut starting from 7 mm high, internal diameter 76 mm, pieces cut, shaped and die-cut according to customer request or design.

Color: White

We process both the insulating papers normally in stock and other insulating papers upon customer request.
Any type of insulating paper can be supplied as follows:
- Original rolls, whole or unwound
- Rolls cut to the customer's requested width
- Bordered rolls
- Slit rolls
- Customized processing (e.g., shaped, die-cut, etc.)

On request, rolls cut to size for tiles with an external diameter of 700/720 (different colour) can be supplied.

UL (Underwriters Laboratoires Inc.) ISOVOLTA AG file E208136 (VOLTAFLEX 2526)

VOLTAFLEX® is a registered trademark of ISOVOLTA Group
