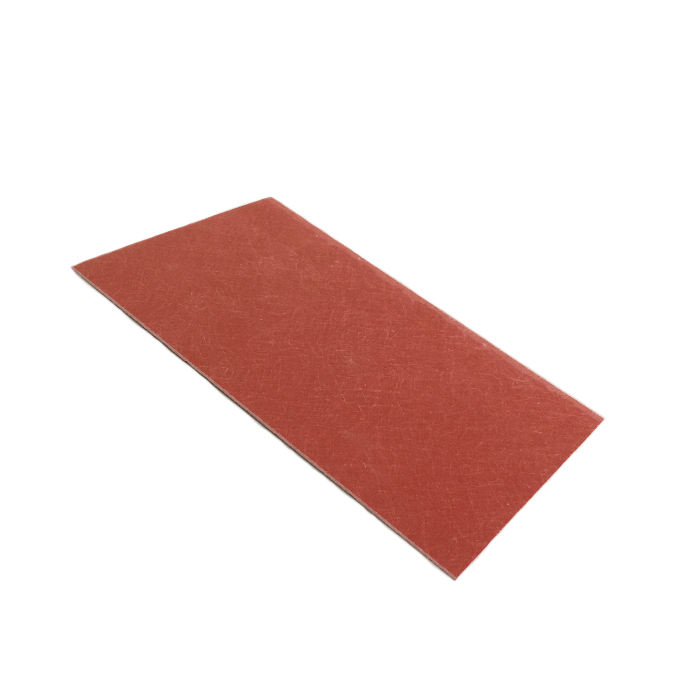

GPO3 POLYESTER GLASS SHEETS – Class F 155°C

Layered insulation based on glass mat and filled polyester resin.
Self-extinguishing.
Used for machined and punched parts.
PROPERTIES

✔ Good mechanical properties
✔ Suitable for blanking up to 6 mm thick
✔ Good dielectric properties

APPLICATION TIPS

- It is intended for the use of electrical equipment
- Cabinets, LV and HV disconnectors
- Diagrams between phases, bases and walls of cabinets
- Connection supports, terminals and bars
- Protection panels, insulators for mobile closures
- Power electronics

Insulation class: F (155°C)
Colours: red or white
Finishes: matt
Self-extinguishing: V0 (UL94)
Specific weight: 1.8 ÷ 1.9

AVAILABLE FORMATS:

2000 X 1000 mm up to 4 mm thickness
2000 x 1250 mm over 4 mm thickness
Thicknesses: from 1 to 60 mm.
