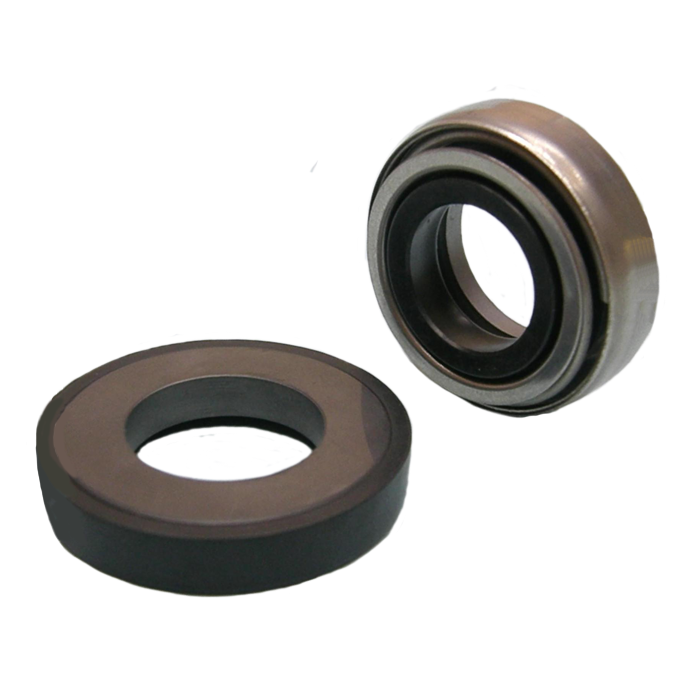

SHORT SPRING SEAL Silicon Carbide
Silicon Carbide Short Spring Seal
SEAL: Silicon carbide - nitrile rubber seals.
COUNTERFACE: Silicon carbide - nitrile rubber seals
Mechanical seal with independent rotation direction, adaptable to any type of electric pump with special performance and for abrasive liquids.
LIMITS OF USE:
p=6 atm - t= -20°C : +90°C - v= 10 m/s.
| COMPLETE COUNTERFACE SEAL | ||||
| d Shaft Diameter | D | L Length of work | AND | THE1 |
| 12 | 24 | 13 | 26 | 8 |
| 13 | 24 | 13 | 26 | 8 |
| 14 | 32 | 13 | 29.5 | 8 |
| 15 | 32 | 13 | 29.5 | 8 |
| 16 | 32 | 13 | 29.5 | 8 |
| 16 | 39 | 13 | 42 | 8 |
| 17 | 39 | 13 | 42 | 8 |
| 18 | 39 | 13 | 42 | 8 |
| 19 | 39 | 13 | 42 | 8 |
| 20 | 39 | 13 | 42 | 8 |
| 20 | 42 | 13 | 45 | 10 |
| 22 | 42 | 13 | 45 | 10 |
| 25 | 42 | 14 | 50 | 10 |
| 28 | 54 | 15 | 57 | 10 |
| 30 | 54 | 15 | 57 | 10 |
| 32 | 54 | 15 | 57 | 10 |
| 35 | 60 | 16 | 63 | 10 |
| 40 | 65 | 18 | 68 | 12 |
The same seals can be supplied in VITON® upon request.
