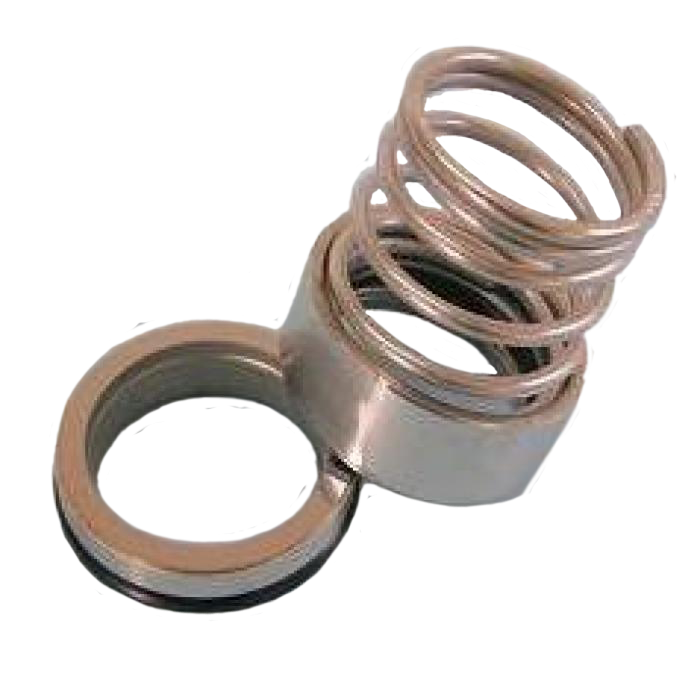

LONG SPRING SEAL Widia

SEAL: Seal body in AISI 304 steel. Sliding face in WIDIA. Spring in AISI 316 steel. Nitrile rubber seals.
COUNTERFACE: In AISI 304 steel. Sliding face in WIDIA. Nitrile rubber seals

Mechanical seal with dependent direction of rotation (standard with right-hand spring), adaptable to any type of electric pump with special performance and for abrasive liquids.

Left-hand springs are available upon request.

USE LIMITS:
p=10 atm - t= -20°C +90°C - v= 20 m/s.

COMPLETE COUNTERFACE SEAL
d Shaft diameter	D	The long work	AND	THE₁
10	18	15	18,1	5,5
12	20	18	20,6	5,5
14	22	22	23,1	6
15	26	22	26,9	7
16	26	23	26,9	7
17	26	23	26,9	7
18	29	24	30,9	8
19	30	25	30,9	8
20	31	25	30,9	8
22	32	25	35,4	8
24	35	27	35,4	8
25	36	27	38,2	8
26	37	27	38,2	8,5
28	38	27	38,2	8,5
30	42	29	43,3	8,5
32	44	30	43,3	9
34	44	30	43,5	9
35	47	39	53,5	9
38	49	39	53,5	11,5
40	54	39	60,5	11,5
42	56	39	60,5	11,5
44	61	41	65,5	11,5
45	64	41	65,5	11,5
50	66	45	72,5	11,5
55	71	47	72,5	11,5
60	80		79,3	11,5
65	85	51	84,5	11,5
70	90	51	89,5	11,5
80	104	59	99,5	11,5
