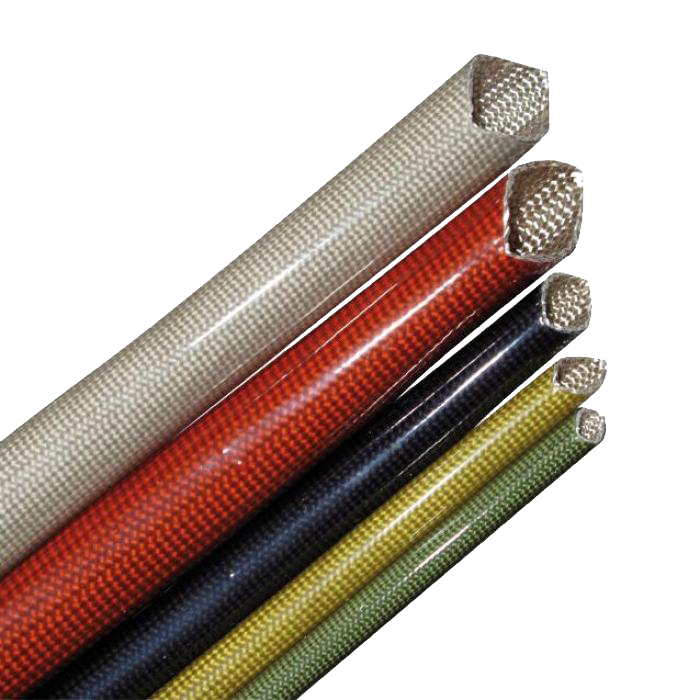

SEP 4 UL TUBE - 4 kV - Class F 155°C

Fiberglass sheath with polyurethane paint

Temperature class: F
Continuous operating temperature: -30°C to +155°C. Peaks at +185°C (few hours)

Dielectric strength: 4 Kv
Paint hardness: 60 Shore A
Halogen-free
Flammability: combustible, but glass fibre resists
Good mechanical resistance
Good resistance to hydrocarbons
Resistance to transformer oils
Good compatibility with class F impregnation paints
Good behaviour with welding
Good behaviour with combustible liquids, does not decompose
Waterproof
Flexible

COLOURS AND PACKAGING
Diameters produced: from 0.5 to 40 mm
Standard colour: light brown
Other colours (usually for diameters up to 20 mm): green, blue, red, black, orange, yellow

Standard packaging:
Diameter 0.5 mm: 400 m
Diameter from 0.8 to 1.5 mm: 300 m
Diameters from 2 to 6 mm: 200 m
Diameters from 7 to 12 mm: 100 m
Diameters from 14 to 20 mm: 50 m
Diameters from 22 to 40 mm: 25 m
