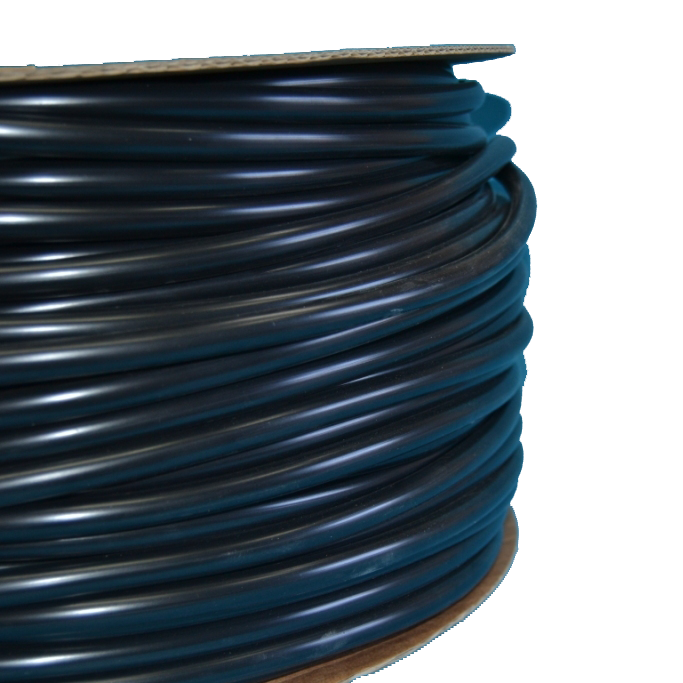

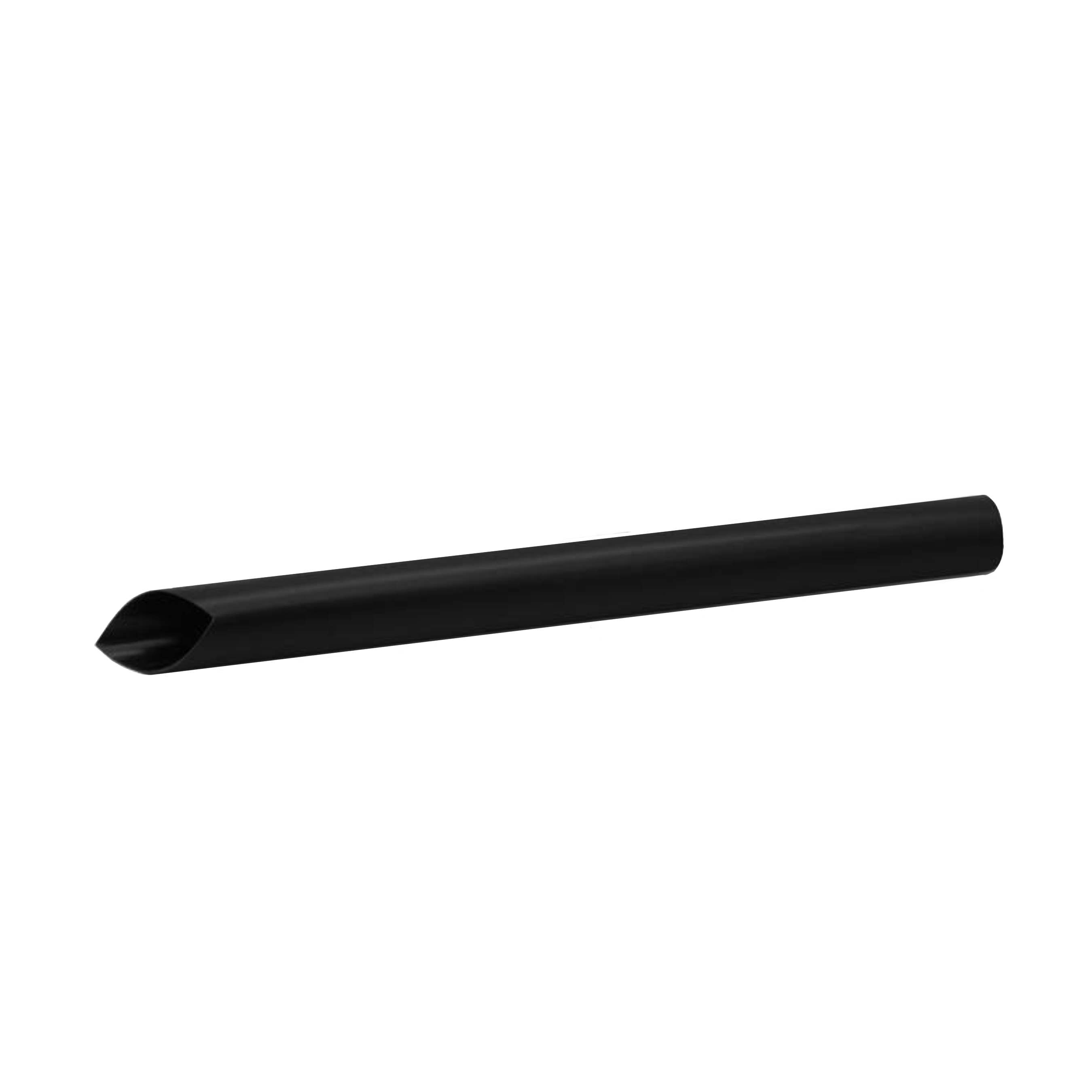

PVC SHEATH HT 105 UL – Class A 105°C
Product image number 2 PVC SHEATH HT 105 UL – Class A 105°C
  • PVC SHEATH HT 105 UL – Class A 105°C
  • Product image number 2 PVC SHEATH HT 105 UL – Class A 105°C

PVC SHEATH HT 105 UL – Class A 105°C

UL approved  UL Approved
Extruded PVC Sheath

Request a quote
Request technical data sheet
PVC SHEATH HT 105 UL – Class A 105°C
Product image number 2 PVC SHEATH HT 105 UL – Class A 105°C
  • PVC SHEATH HT 105 UL – Class A 105°C
  • Product image number 2 PVC SHEATH HT 105 UL – Class A 105°C

• Extruded PVC sheath
• Minimum temperature: -20°C
• Maximum temperature: +105°C
• Dielectric strength: from 10 to 20 kV/mm
• Density: 1.44 g/cm3
• Hardness: 91 ShA ±2
• Breaking strength: ≥ 16 MPa
• Elongation at break: ≥ 270%
• Self-extinguishing
• Good mechanical resistance
• Water resistant
• Very flexible
• Good behaviour with hydrocarbons

COLORS AND PACKAGING

Diameters: from 2 to 22 mm
Colors: All colors except transparent
Packaging: disposable cardboard reels
