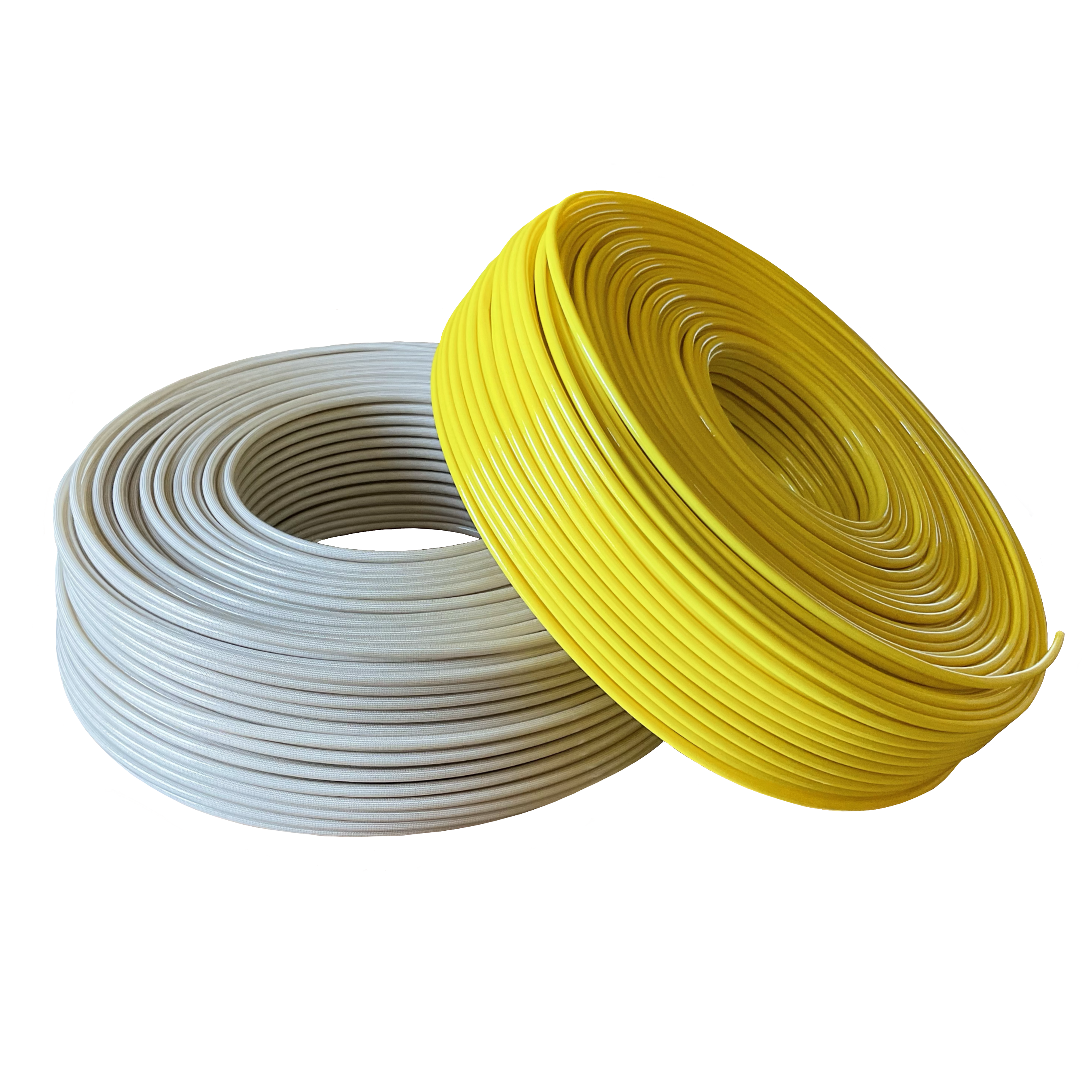

13F POLYURETHANE GLASS TUBE – 4kV – Class F 155°C

Q: 13F POLYURETHANE GLASS TUBE – 4kV – Class F 155°C

The 13F polyurethane glass tube is made of a braided glass braid, covered with polyurethane elastomer through an extrusion process - Thermal class F (155°C)

13F polyurethane glass tube

Request a quote

Request technical data sheet

The 13F tube is made of braided glass braid, covered with polyurethane elastomer through an
extrusion process, thermal class F (155°C)

• Operating temperature: –30°C to 155°C

• High flexibility combined with notable mechanical resistance.

• Operating temperature of 155°C, peaks at +200°C (for a short time)

• Dielectric strength: 4000 V minimum, 5000 V average

• It is particularly suitable for covering and insulating connections of electric motors and class F transformers, wiring, conductor outputs, etc.

• Good resistance to solvents

• Good compatibility with paints and impregnation resins

STANDARD COLOR: NATURAL

OTHER COLORS AVAILABLE ON REQUEST

Also available in the more flexible version: 13F GU

Upon request, we can supply the tube cut to the desired length.

Request a quote

Request technical data sheet
