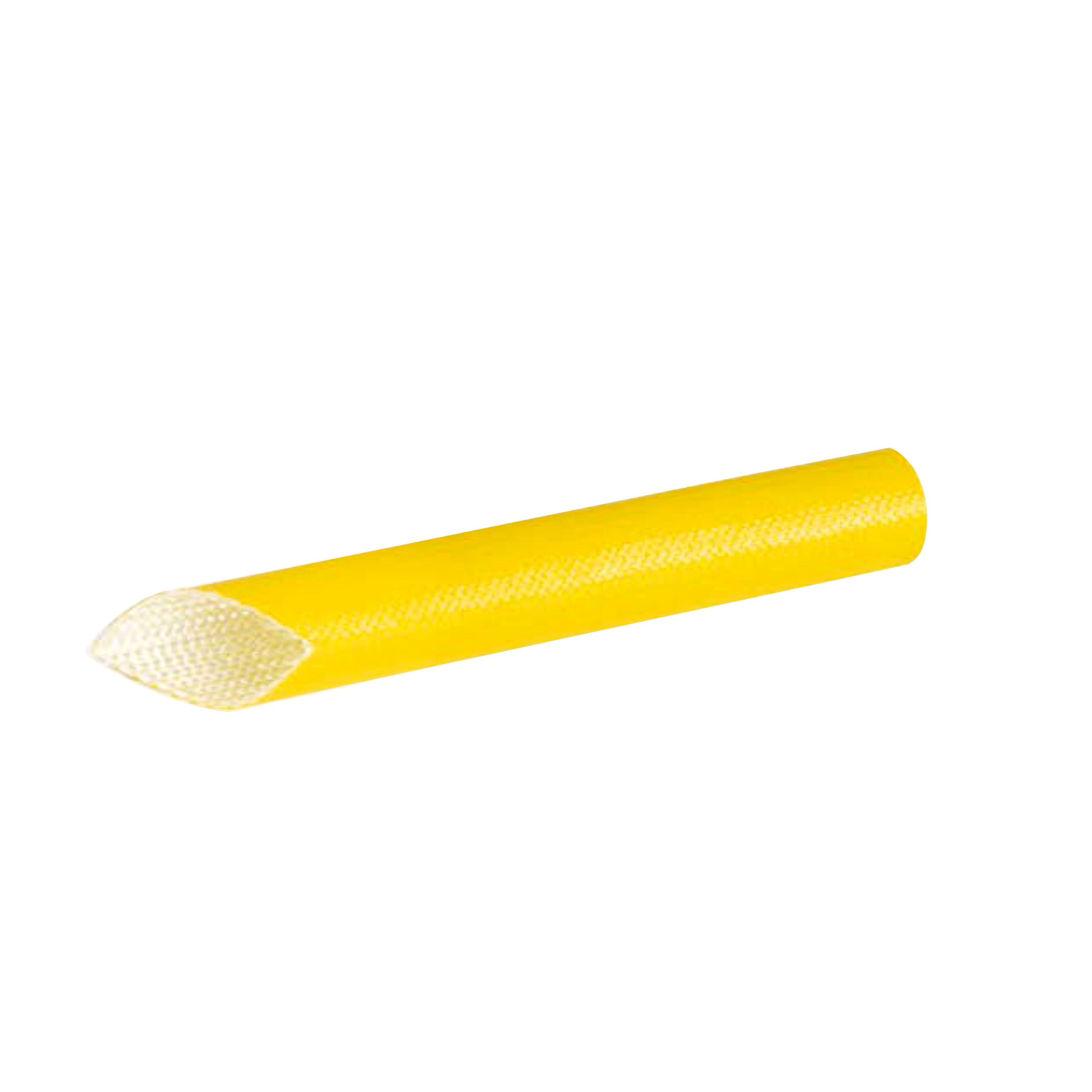

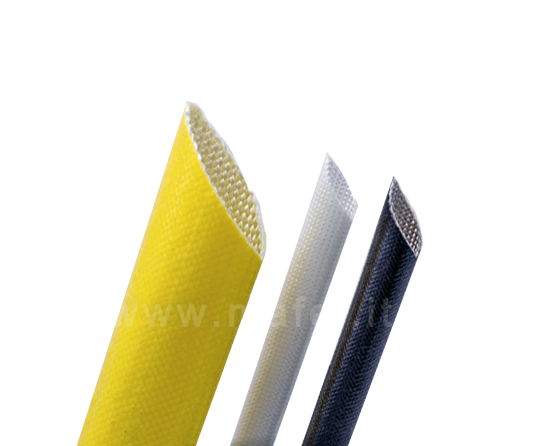

ACRYLIC COATED FIBERGLASS TUBE 13F 7kV AC UL – Class F 155°C

• Temperature class: F
• Continuous operating temperature: -30°C to +155°C
• 60 days at 190°C (according to UL1441)
• Dielectric strength: 7 kV minimum average, with no individual value below 5 kV (according to UL1441)
• Halogen-free
• Good mechanical resistance
• Good compatibility with impregnation paints of the same class
• Good welding behavior
• Good resistance to fraying
• Waterproof
• Very flexible
• Good oil resistance at 80°C (according to UL1441)

COLORS AND PACKAGING

• Product diameters: from 0.5 to 25 mm
• Standard color: Yellow
• Other colors: All colors

Standard packaging:
• Diameter from 0.5 to 4.5 mm: 200 m
• Diameter from 5 to 14 mm: 100 m
• Diameter from 16 to 25 mm: 50 m

UL UZFT2/8
