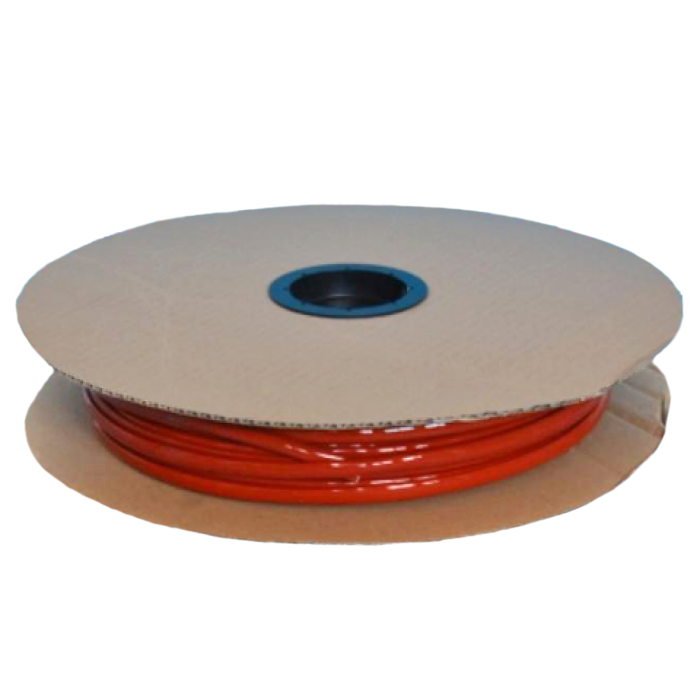

7kV UL GLASS SILICONE TUBE – Class C 220°C

• Temperature class: C
• Continuous operating temperature: from -60° to +250°C
Peaks at +290°C (a few hours)
• Dielectric strength: 7 kV
• Flammability: self-extinguishing
• Good mechanical resistance
• Good UV resistance
• Resistance to transformer oils
• Good compatibility with impregnation paints of the same thermal class
• Good behaviour with welding
• Good behaviour with combustible liquids: does not decompose
• Halogen-free
• Waterproof
• Flexible
• Fireproof

APPROVAL   UZFT2/8

COLORS AND PACKAGING
• Product diameters: from 0.5 to 50 mm
• Standard colors: brick red, black

Standard packaging:
• Diameters 0.5 mm: 400 m
• Diameters from 0.8 to 1.5 mm: 300 m
• Diameters from 2 to 6 mm: 200 m
• Diameters: from 7 to 12 mm: 100 m
• Diameters from 13 to 20 mm: 50 m
• Diameters from 22 to 25 mm: 25 m
• Diameters from 26 to 50 mm: 30 m
